Product Information

I. Application Areas

1. Food / Packaging / Filling: Washable, oil-free, low noise, meeting hygiene requirements.

2. Medical and Testing: Silent, maintenance-free, corrosion-resistant, suitable for imaging/testing equipment.

3. Automated Production Lines: High-frequency start-stop, high-speed reciprocating motion, maintenance-free, minimal downtime.

4. Semiconductor / Photovoltaics: Clean, low friction, replaceable inner liner, suitable for cleanrooms.

5. Logistics / AGV: Dust and impact resistant, adaptable to complex working conditions.

6. Automotive Manufacturing / Laboratory Equipment: Corrosion-resistant, low noise, suitable for tooling and test platforms.

II. Advantages

1. Maintenance-free and Silent: Self-lubricating engineering plastics, no oil contamination, low-noise operation.

2. Dirt-resistant and Washable: Stable operation in dusty/humid environments, some models resistant to food-grade cleaning agents.

3. Easy Installation and Maintenance: Low requirements for shaft hardness and hole position accuracy; inner liner can be replaced independently, reducing downtime.

4. Compact Structure and Balanced Load Bearing: Surface contact load bearing and good impact resistance, long service life.

5. Corrosion-resistant and Lightweight: Anodized aluminum housing, free of harmful components such as copper and lead, suitable for food/medical applications.

6. Suitable for Rotary/Oscillating Motion: Adaptable to combined linear + oscillating/small-angle rotary motion.

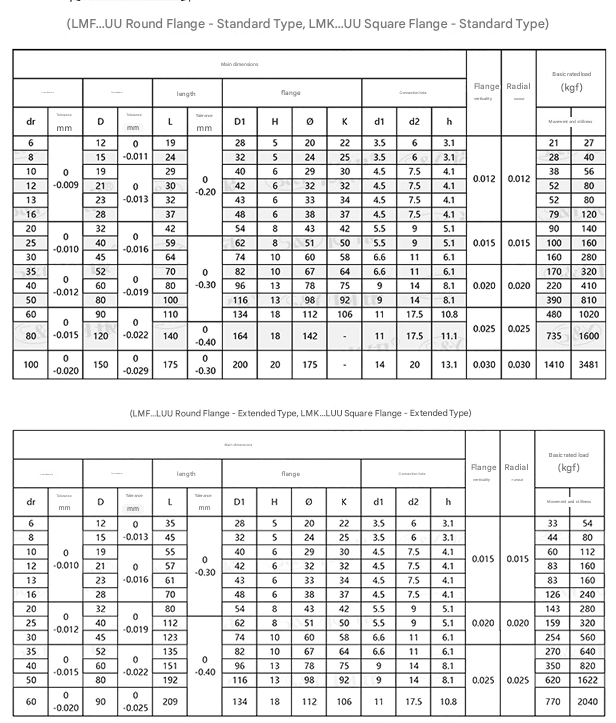

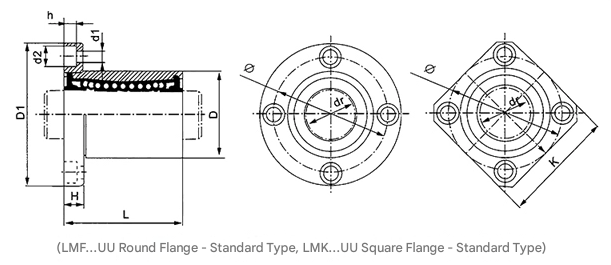

Product Specifications
