Product Information

Extended box-type linear guides are components with important applications in linear motion systems.

I. Application Areas

CNC Machine Tools: Due to their high precision and strong load-bearing capacity, extended box-type linear guides can be used in CNC machine tools for worktable movement, tool feeding mechanisms, etc., effectively reducing equipment vibration and improving machining accuracy.

Industrial Automation Production Lines: In various industrial automation production lines, such as electronic equipment production lines and automotive parts production lines, extended box-type linear guides can be used in conveyor lines, assembly robots, and other equipment to achieve long-distance, high-precision linear motion.

Semiconductor Manufacturing Equipment: Semiconductor manufacturing processes require extremely high precision. Extended box-type linear guides can be used in wafer transfer, photolithography, and other processes in semiconductor manufacturing equipment, ensuring high-precision operation.

Robotics: In the field of robotics, extended box-type linear guides can be used in the joints or linear motion mechanisms of robot arms, improving the robot's motion accuracy and load capacity.

II. Advantages and Features

High Rigidity and High Load Capacity: Compared with ordinary linear guides, extended box-type linear guides are longer, significantly increasing rigidity and load capacity.

High Precision: Extended box-type linear guides provide high-precision linear motion, effectively reducing errors during movement and ensuring the machining accuracy and operational stability of the equipment.

Low Friction and Smooth Movement: Some extended box-type linear guides use a hybrid rolling and sliding design, resulting in low friction and a 45% reduction in driving force compared to standard types, enabling smooth movement.

Long Service Life: Some extended box-type linear guides use high-quality materials and advanced manufacturing processes, such as surface-oxidized aluminum alloy, which has good wear resistance and corrosion resistance, extending their service life.

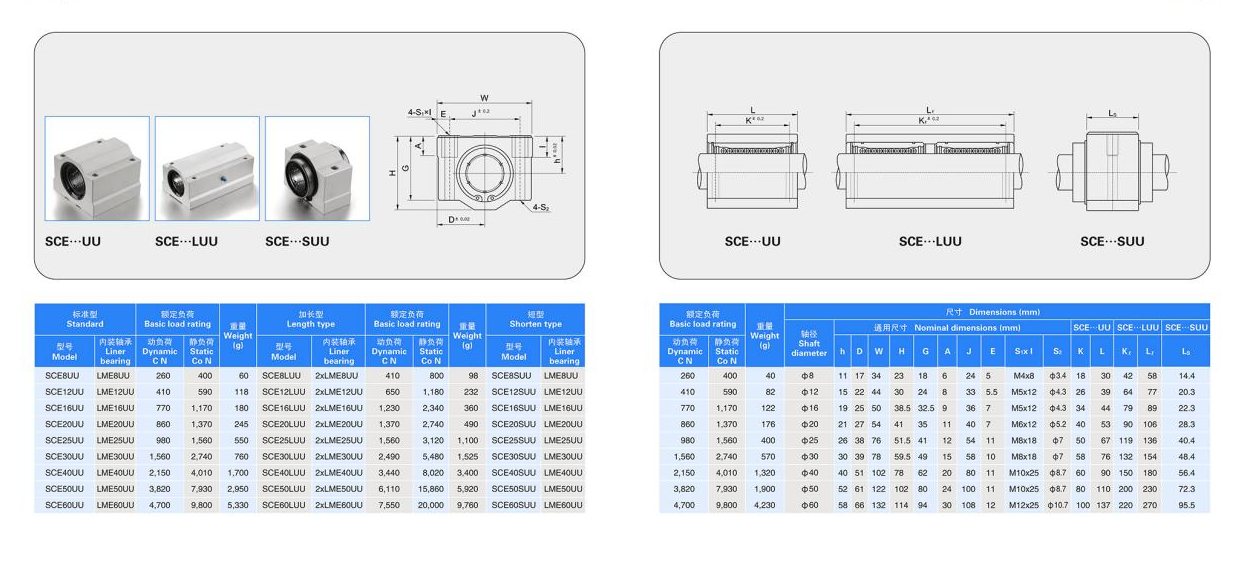

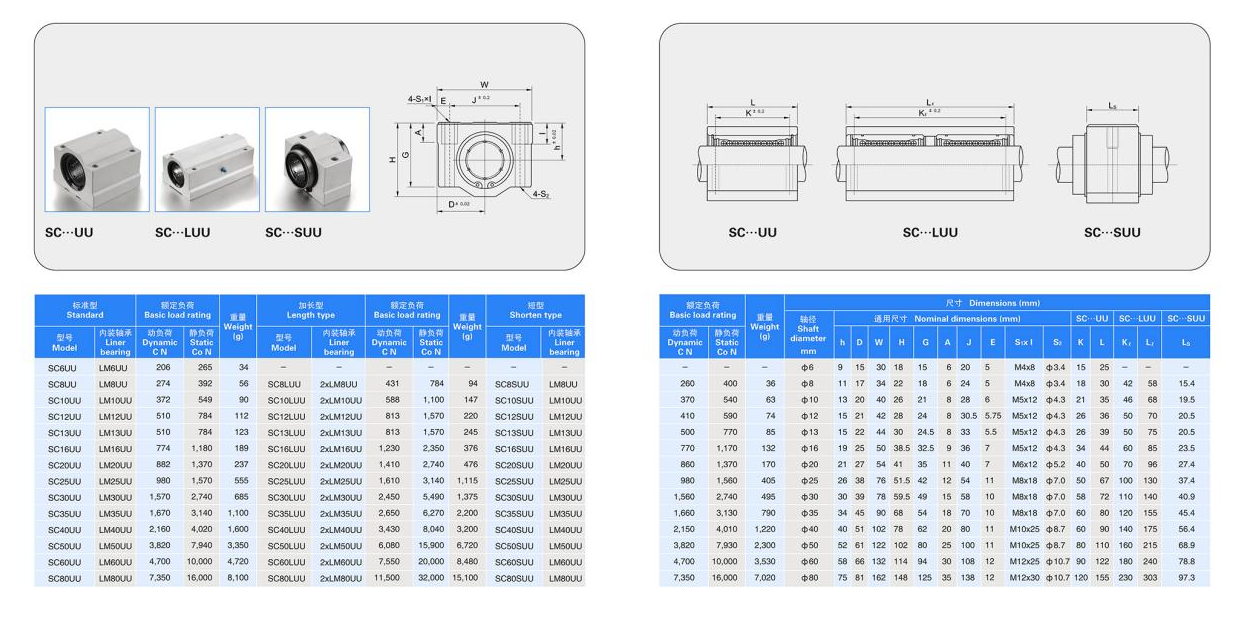

Product Specifications
