Product Information

The intermediate circular flange linear bearing is a type of linear bearing, named for its circular flange in the middle section. It is widely used in automation equipment and other fields. The following is an introduction to it:

- Structural Features: The intermediate circular flange linear bearing consists of an outer ring, a cage, steel balls, and a sealing ring. Its circular flange has evenly distributed bolt holes, allowing the bearing to be easily fixed to the equipment's mounting plate with bolts. This design ensures stable and accurate installation.

- Material and Performance: The bearing outer cylinder is usually made of stainless steel or high-quality alloy steel, offering high strength and corrosion resistance. The interior generally uses a precision steel ball circulation system, resulting in low friction and smooth operation. It also features high precision and high load capacity, able to withstand large radial loads and providing high positioning accuracy.

- Model Specifications: Intermediate circular flange linear bearings come in various models and specifications, such as the common LMFM series, with inner diameter sizes ranging from 6mm to 50mm. Different models have varying outer diameters, lengths, and rated loads to meet diverse industrial application needs.

- Application Fields: Widely used in automated production lines, CNC machine tools, industrial robots, precision instruments, and other fields, it provides support and guidance for linearly moving components, ensuring the precise operation of the equipment.

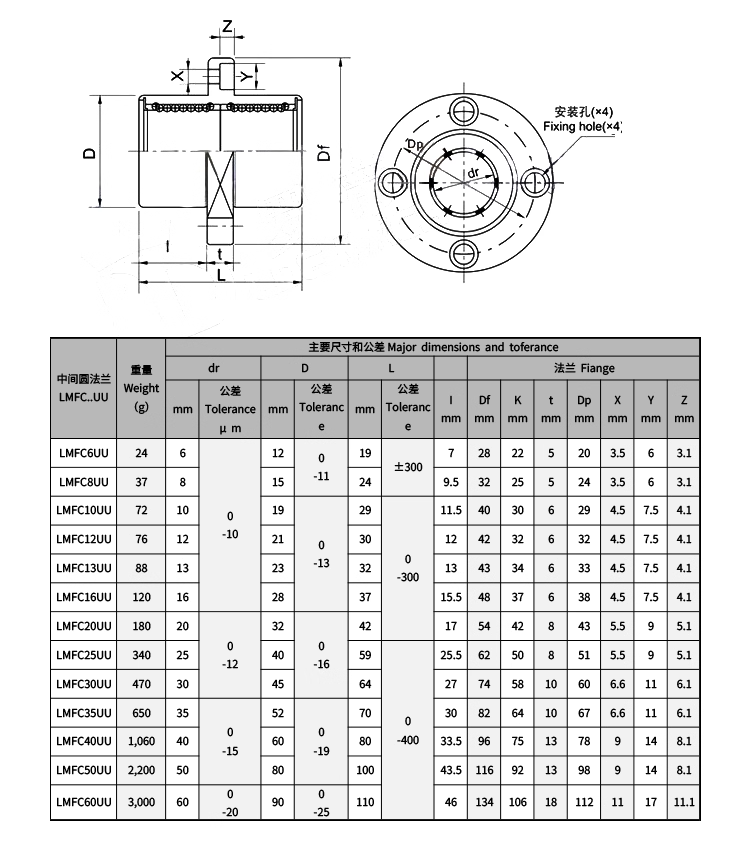

Product Specifications
