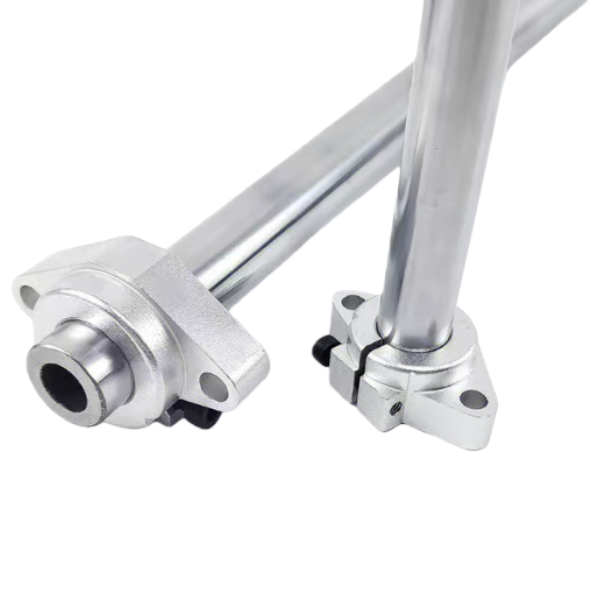

Product Information

1. Automated Production Lines and Conveying Equipment: Horizontal conveying mechanisms: such as side guide shaft supports for belt conveyors and roller conveyors – horizontal linear shaft supports are fixed on both sides of the conveyor line, supporting the linear shaft as a "guide rail" to prevent material displacement during conveying (e.g., horizontal transfer of electronic components and small parts);

2. Machine Tools and Precision Machining Equipment: Feeding mechanisms of small machine tools: such as the "X-axis/Y-axis horizontal movement" of desktop CNC milling machines and engraving machines – horizontal linear shaft supports are fixed under or on the side of the machine tool workbench, supporting the linear shaft as the "guide rail reference" for feeding movement, ensuring the linearity of the milling cutter/engraving head in the horizontal direction (accuracy directly affects the surface smoothness of the processed parts);

3. Medical and Laboratory Equipment: Horizontal moving parts of medical testing equipment: such as the "sample rack horizontal transfer track" of biochemical analyzers – horizontal supports support the linear shaft, guiding the sample rack to accurately enter the testing station in the horizontal direction, avoiding testing errors caused by sample shaking;

4. Logistics and Warehousing Equipment: Horizontal guide rails of small stackers: such as mini stackers in warehouses (used for light cargo handling), horizontal linear shaft supports are fixed on the horizontal walking mechanism of the stacker, supporting the linear shaft as a walking guide rail, ensuring that the stacker does not deviate when moving horizontally along the shelves;

II. Advantages of Use

1. High-precision guidance in the horizontal direction, suitable for linear motion requirements

2. Stable load bearing, distributing horizontal load

3. Flexible installation, adaptable to different spatial layouts

4. Durable structure, suitable for complex working conditions

5. Controllable cost, high cost-effectiveness

Product Specifications
