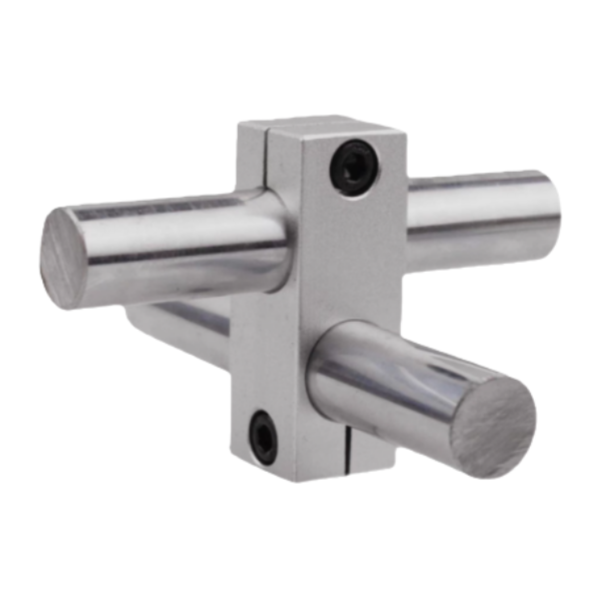

This component is a double-hole shaft clamp (also called a cross-shaft fixing clamp), a fixing connector used in mechanical transmission. Key information is as follows:

1. Structural Features

- Material: Aluminum alloy (surface anodized treatment, combining lightweight and corrosion resistance);

- Design: The main body has two vertical/intersecting through-holes (forming a cross layout), each hole equipped with an open slot and an internal hex locking screw to clamp the linear shaft;

- Additional structure: Some models have mounting screw holes for fixing to the equipment frame.

2. Core Function

Used to fix two linear shafts in a vertical/intersecting manner, achieving spatial positioning of the shafts, improving the structural stability of the transmission system, and preventing shaft displacement or shaking.

3. Applicable Scenarios

Commonly found in linear motion structures requiring multi-axis cross layouts in automation equipment, 3D printers, machine tools, measuring instruments, etc., used in conjunction with linear bearings, sliders, and other components.

Product Specifications


Same Diameter, Double Hole, Single Bolt
Model *DD**	A(long)	B(Width)	C(High)	F(Hole Spacing)	E	M(Thread)	Bolt
4*4	26	10	10	8	5	M4	M3*10
5*5A	34	12	12	10	5	M3	M3*8
5*5B	34	12	12	10	5	M4	M4*12
6*6A	34	12	12	10	5	M3	M3*8
6*6B	34	12	12	10	5	M4	M4*12
8*8	41	15	15	13	5	M4	M4*10
10*10A	45	16	16	15	5	M4	M4*10
10*10B	45	20	20	15	6	M5	M5*14
11*11A	49	20	20	17	6	M5	M5*14
12*12A	49	20	20	17	6	M5	M5*14
13*13A	53	20	20	19	6	M5	M5*14
14*14A	53	20	20	19	6	M5	M5*14
15*15B	57	25	25	21	6	M5	M5*18
16*16B	57	25	25	21	6	M5	M5*18
17*17A	61	25	25	23	6	M5	M5*18
18*18A	61	25	25	23	6	M5	M5*18
19*19A	64	25	25	25	6	M5	M5*18
20*20A	69	25	25	25	7	M6	M6*18
20*20B	73	30	30	25	8	M8	M8*20
22*22A	75	30	30	25	8	M8	M8*20
25*25A	86	32	32	33	8	M8	M8*25

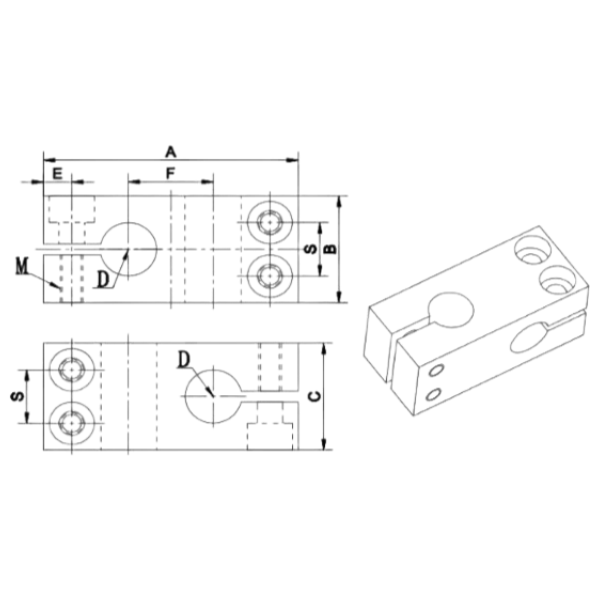

Same Diameter, Double Hole, Double Bolt
Model *DD**	A(long)	B(Width)	C(High)	F(Hole Spacing)	E	S	M(Thread)	Bolt
10*10C	45	20	20	15	5	10	M4	M4*14
11*11B	49	20	20	17	5	10	M4	M4*14
12*12B	49	20	20	17	5	10	M4	M4*14
13*13B	53	20	20	19	5	10	M4	M4*14
14*14B	53	20	20	19	5	10	M4	M4*14
15*15C	57	25	25	21	6	12	M5	M5*18
16*16C	57	25	25	21	6	12	M5	M5*18
17*17B	61	25	25	23	6	12	M5	M5*18
18*18B	61	25	25	23	6	12	M5	M5*18
19*19B	64	25	25	25	6	12	M5	M5*18
20*20C	69	25	25	25	7	12	M5	M5*18
22*22B	71	30	30	25	7	14	M6	M6*20
24*24A	78	35	35	30	7	16	M6	M6*25
25*25B	82	32	32	33	7	16	M6	M6*25
28*28A	85	40	40	33	7	18	M6	M6*30
30*30A	91	40	40	37	7	18	M6	M6*30
32*32A	93	40	40	37	7	18	M6	M6*30
35*35A	106	45	45	43	9	20	M8	M8*35
40*40A	114	50	50	46	9	22	M8	M8*35
45*45A	136	55	55	55	11	26	M10	M10*40
50*50A	146	60	60	60	11	28	M10	M10*45

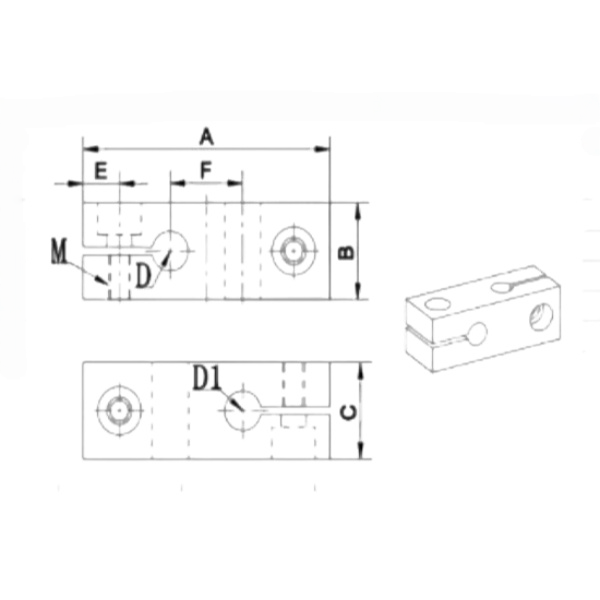

Unequal Diameter Double-Hole Single Bolt
ModelD*D1	A(long)	B(Width)	C(High)	(Hole Spacing)	E	I(Thread)	Bolt
6*8	37	15	15	12	5	M4	M4*10
6*10	41	15	15	13	5	M4	M4*10
6*12	42	15	15	13	5	M4	M5*14
8*10	43	16	16	14	5	M4	M4*10
8*12	45	20	20	15	6	M5	M5*14
10*12	47	20	20	16	6	M5	M5*14
10*15	51	20	25	18	6	M5	M514 M518
10*16	51	20	25	18	6	M5	M514 M518
10*20	55	20	25	20	6	M5	M514 M518
12*15	54	20	25	20	6	M5	M514 M518
12*16	54	20	25	20	6	M5	M514 M518
12*20	57	20	25	21	6	M5	M514 M518
15*16A	57	25	25	21	6	M5	M5*18
15*20A	61	25	25	23	6	M5	M5*18
16*20A	61	25	25	23	6	M5	M5*18
10*17	54	20	25	20	6	M5	M514 M518
10*18	54	20	25	20	6	M5	M514 M518
12*17	55	20	25	20	6	M5	M514 M518
12*18	55	20	25	20	6	M5	M514 M518
17*20	62	25	25	23	6	M5	M5*18
18*20	62	25	25	23	6	M5	M5*18
