Product Information

Guide shaft supports (also known as linear shaft holders or linear shaft brackets) are auxiliary fixing components in linear motion systems.

Their core features and uses:

- Structure: Typically made of aluminum alloy/stainless steel, they feature an open circular hole (for inserting the linear shaft), locking screws (to secure the shaft), and mounting holes on the bottom/side (for fixing to the equipment frame).

- Function: Primarily used to fix and support linear shafts (shaft components that work with linear bearings to achieve linear motion), improving the stability and rigidity of the shaft after installation and preventing shaft wobbling or displacement.

- Applications: Commonly found in automated equipment, 3D printers, machine tools, and other mechanical structures requiring linear motion, used in conjunction with linear bearings, sliders, and other components.

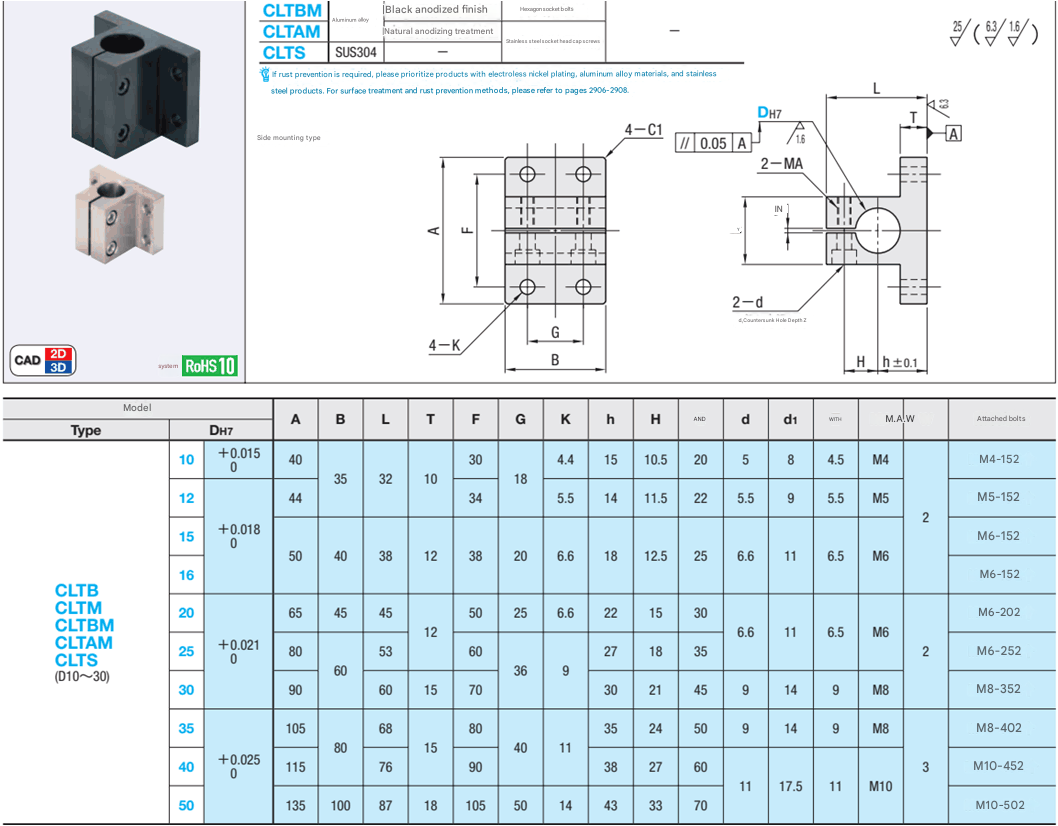

Product Specifications
