Product Information

Guide Shaft Support (Blackened Treatment), available in extended and standard types, with the following key information:

1. Product Types

- Top: Extended Blackened Guide Shaft Support (longer main body)

- Bottom: Standard Blackened Guide Shaft Support (shorter main body)

2. Key Features

- Material: Typically aluminum alloy, with a blackened surface treatment (improving rust resistance and wear resistance)

- Structure: Features an open slot and locking screw (for clamping the linear shaft), and a flange and mounting holes at the bottom (for fixing to the equipment frame).

3. Applications

Used to fix and support linear shafts, improving the stability and rigidity of the shaft after installation. Commonly found in automated equipment, 3D printers, machine tools, and other mechanical structures requiring linear motion.

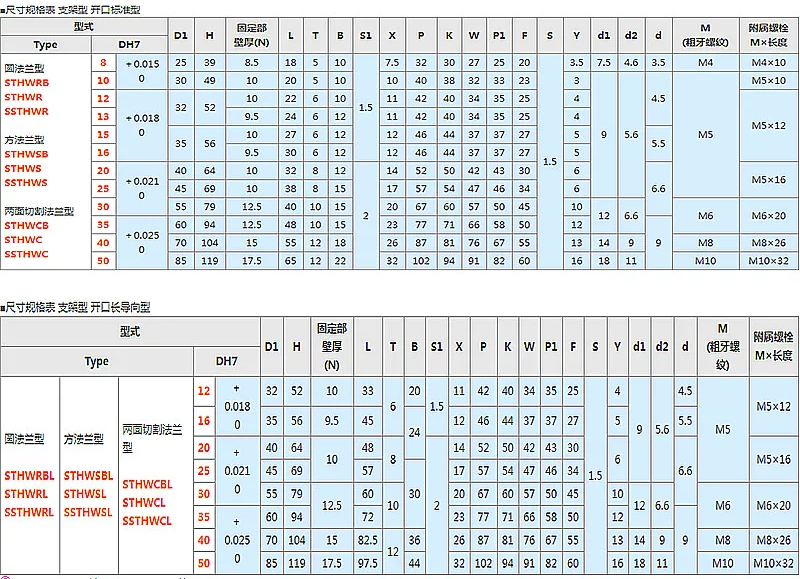

Product Specifications
